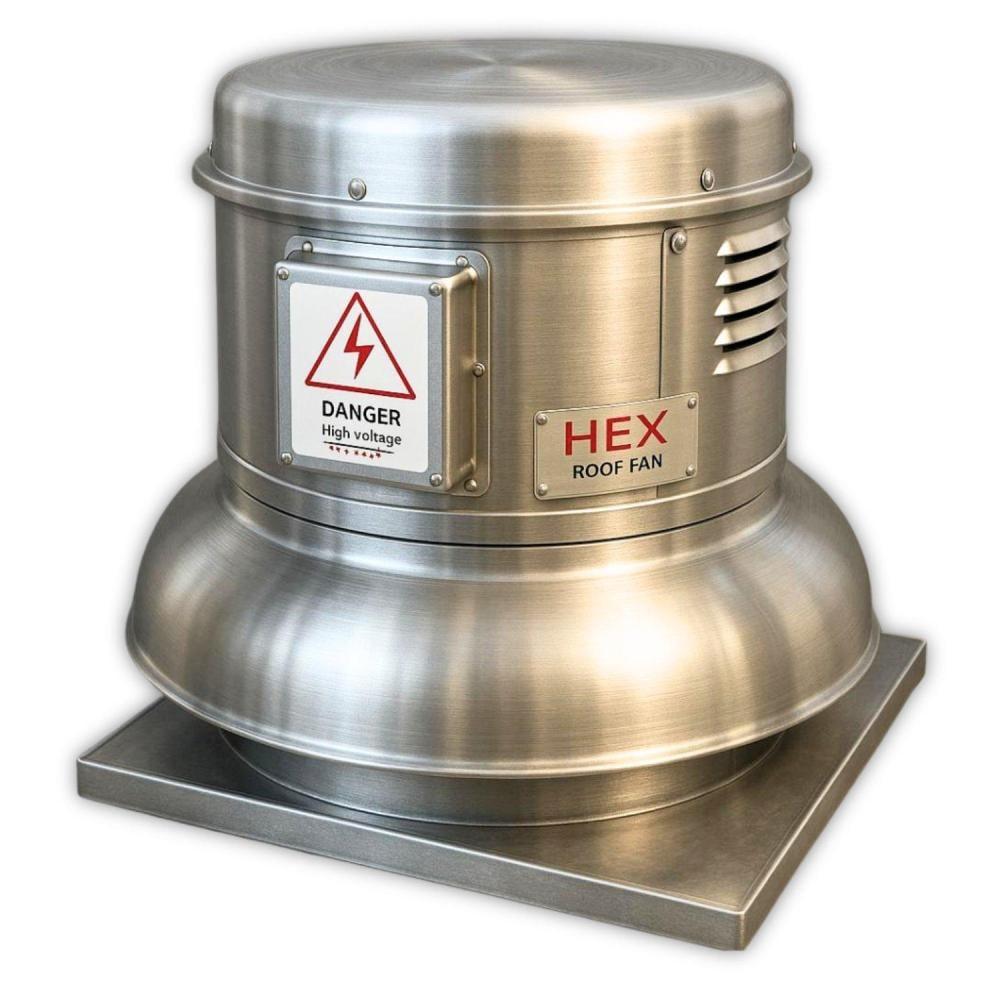

HEX TORNADO 1300 Roof Exhaust Fan

Specifications:

HEX TORNADO 1300 Roof Exhaust Fan

The HEX roof exhaust fans are advanced, high-capacity units specifically designed for kitchens and restaurants to tackle the most challenging ventilation problems caused by prolonged operation, smoke, oil, and heat emissions.

• Made of aluminum alloy, laser-cut for high-precision production
• Base constructed from aluminum alloy

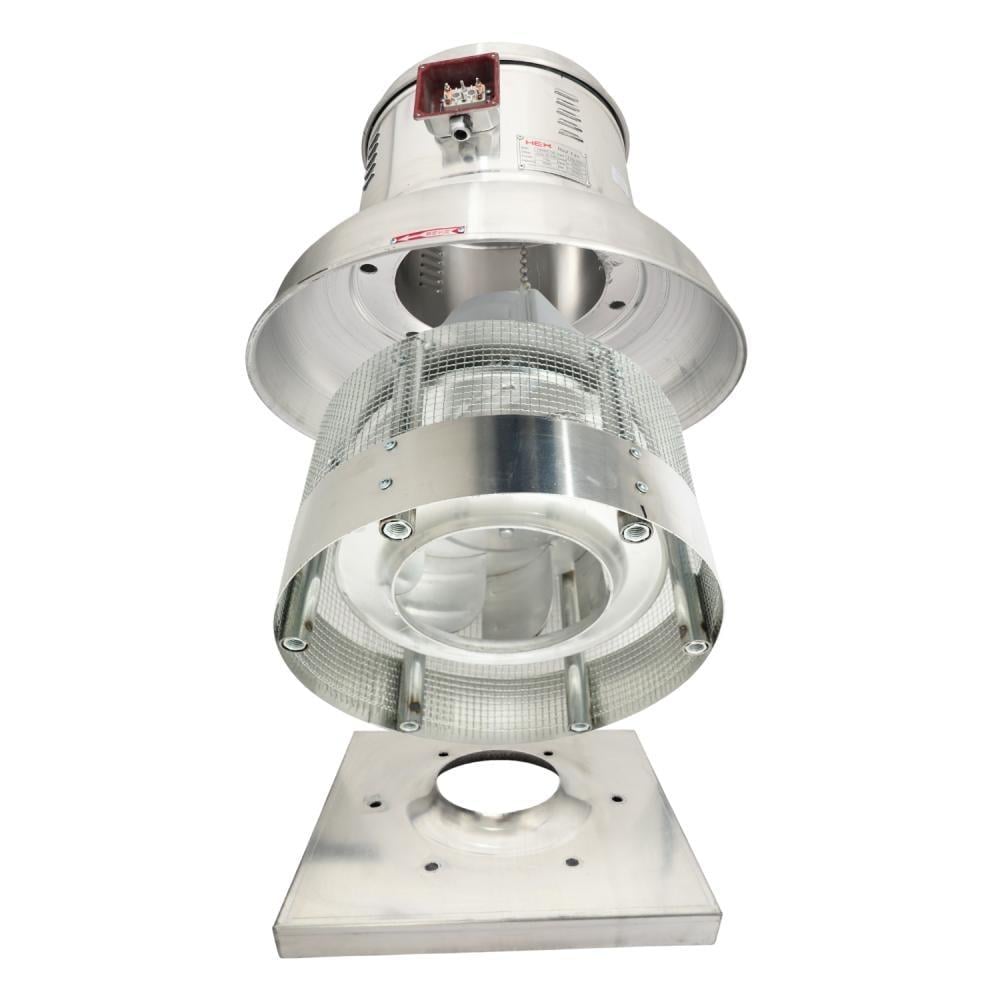

• Can be opened manually, convenient for daily maintenance and cleaning

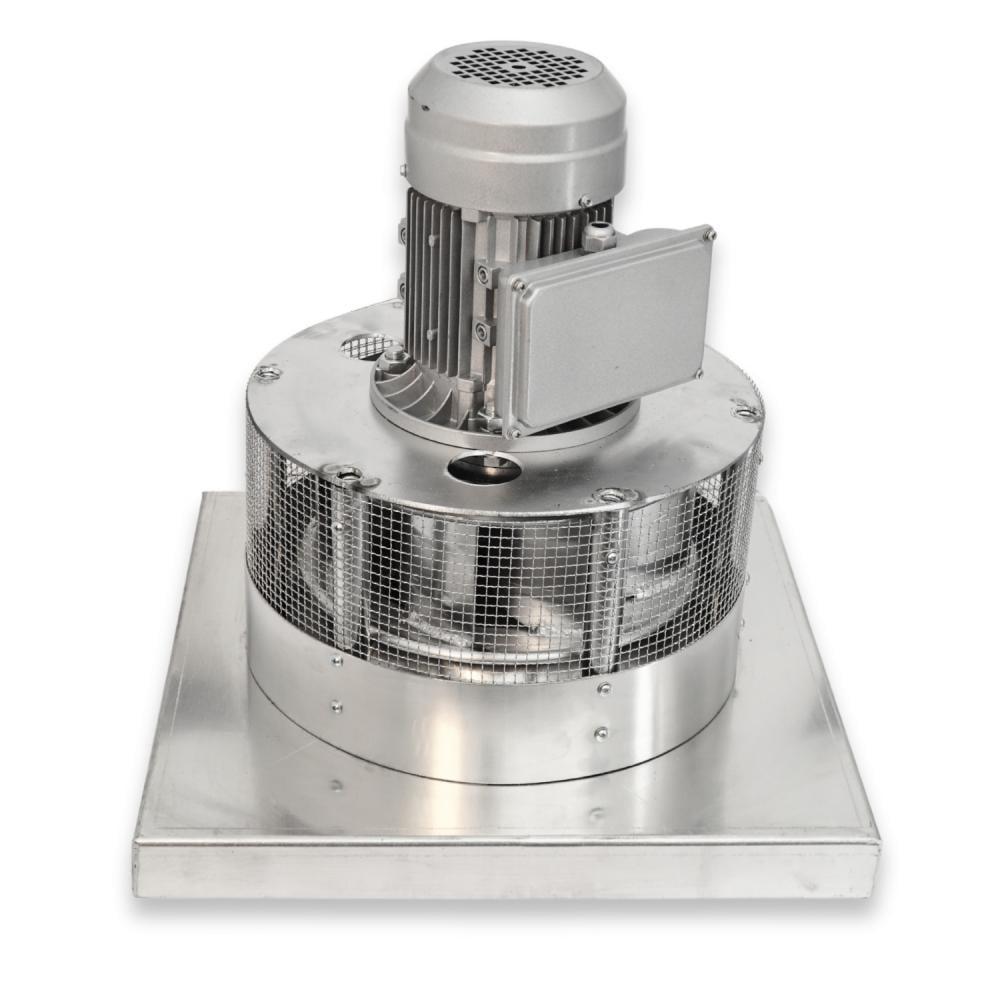

• Internal fan made of aluminum alloy
• Motor shaft balance test fully complies with G4.0 ISO1940 standards
• Color: Steel
• Airflow: 1240 CFM
• Motor Power: 0.75 HP (Three-quarter horsepower)
• Motor Capacity: 550W
• Voltage: 220/240V, Single-phase
• Base Size: 51 x 51 cm
• Duct Size: 17 x 17 cm or 6-inch round outlet
• Fan Speed: 1450 RPM
• Static Pressure: 313 PA
• Air Outlet Direction: Downward

Features:

• Can function as a smoke extractor fan
• Operates effectively in high-temperature environments
• Full mold aluminum alloy structure
• Among the most advanced rotation motors in its category
• Direct drive operation
• Complies with IEC60335 report
• Built to ISO9001:2018 quality management standards
• Maximum operating temperature: 160°C
• Can withstand up to 300°C in extreme environments

Brand:

HEX

Design:

USA

Country of Origin:

China

Warranty:

5-Year Replacement Warranty

Warranty Terms & Conditions:

• Covers manufacturing defects for 5 years
• Excludes misuse, damage due to high or low voltage, fire, breakage, excessive heat, or poor installation
• Not valid if the issue is caused by a blown fuse (breaker) or capacitors that require periodic maintenance
• Warranty service requires an original invoice and must be within the active warranty period
• For returns or replacements: within 7 days from the invoice date. Product must be in original condition
